TECH SPECS
Pro Data Datasheet
Capacity
12TB, 24TB, 48TB, 96TB, 192TB.
Expandable up to 6.9PB.
Expansion
Up to six devices can be daisy-chained per Thunderbolt port pair. Multiple daisy-chains can be connected to computers with more than one Thunderbolt host port.
Performance
Up to 5.2 GB/s Read, 2.4 GB/s Write bandwidth.

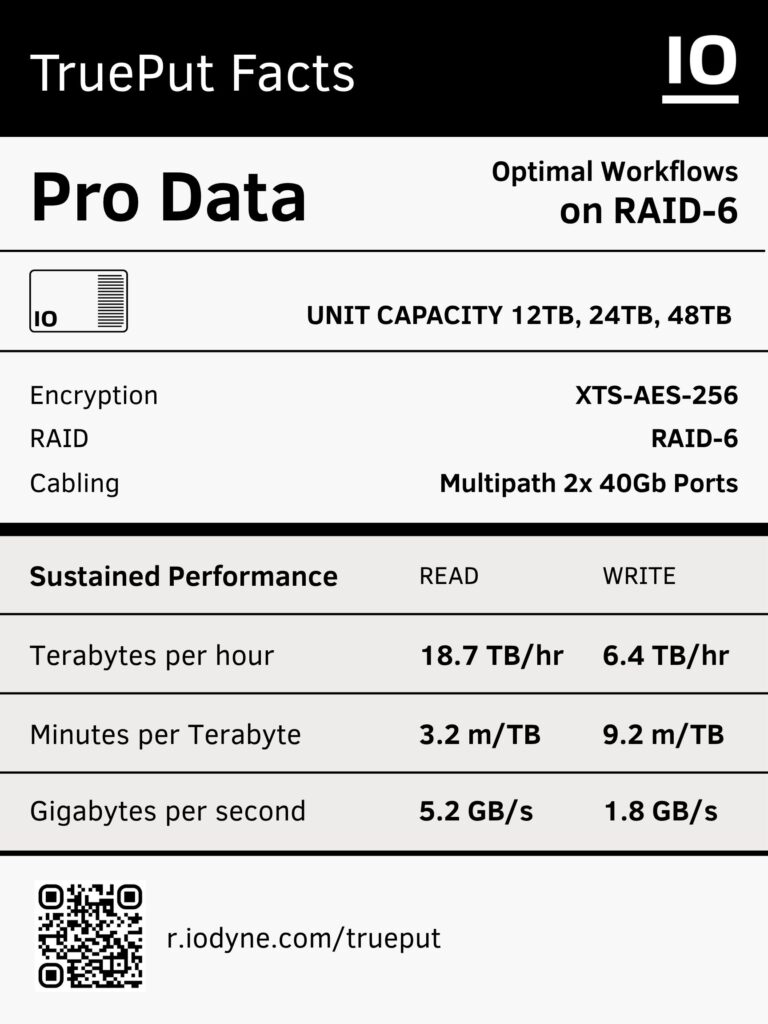

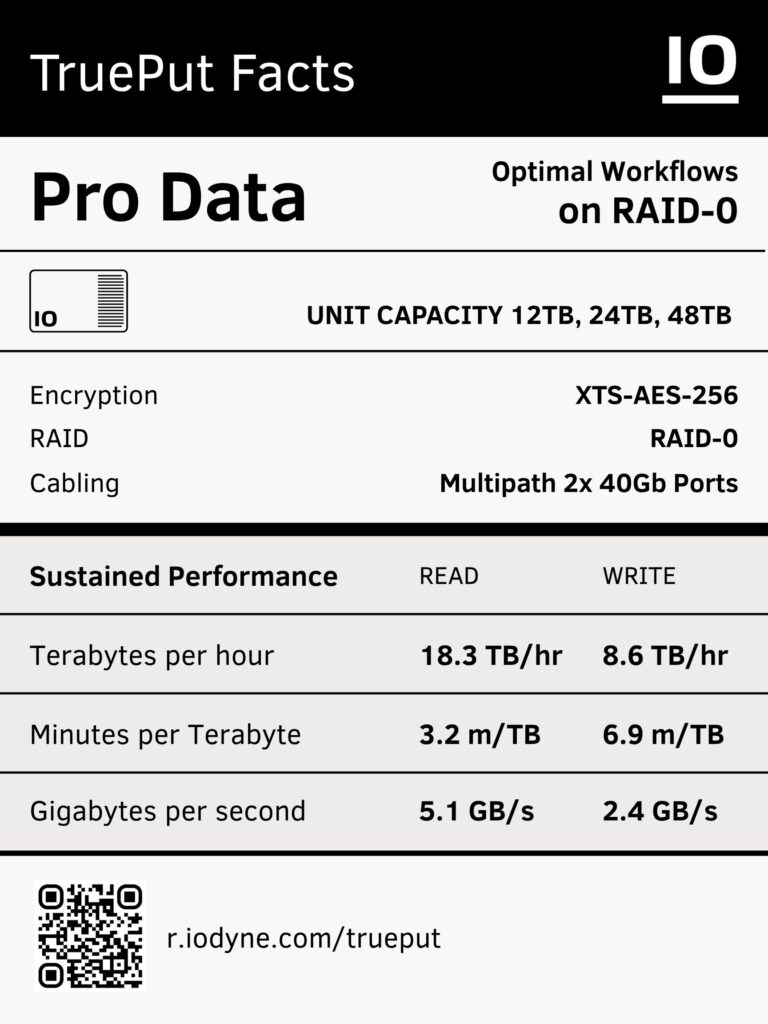

Learn about the impact of Pro Data’s TruePut.
Connectivity
8× 40Gb Thunderbolt ports:
4 upstream to one or more computers.
4 downstream to other devices and accessories.
Cables
2× 1m 40Gb included
0.3m, 2m, or 5m 40Gb available
OS Support
macOS: 13.0+ (Ventura, Sonoma, Sequoia, Tahoe)
Windows: 10 version 21H2, 11 version 22H2+
Linux: Ubuntu 22.04+ (running kernel 6.8-generic or later)
Download iodyne software
Power
180W GaN power adapter, 110-220V 50-60Hz.
Dimensions
15.39” × 10” × 1.22” , 7.3 lbs
39.1cm × 25.4cm × 3.1cm, 3.3kg
Interlocking vertical stand included. Height including rubber feet on flat surface in horizontal orientation: 1.4″ (3.55cm)
Features
Simultaneous Windows, Mac, and Linux support
Multi-Reader Sharing
Transactional RAID-6 and RAID-0
Data Checksums and Self-Healing
XTS-AES-256 Encryption with Hardware Secure Enclave
NVMe Thunderbolt Multipathing up to 4× paths
Multi-User connectivity for up to 4× computers
Storage Handoff between connected macOS computers
Dynamic Containers with up to 15 containers
per device
RAID Levels per-Container with adaptive striping and parity
Automatic SSD Fault Management and RAID Resilvering
Designed for easy Self-Repair of SSD modules
Protocols
Warranty
One year standard. Extended to three years at no charge upon registering your device with an iodyne Cloud account. Free replacement SSD modules while device is in Warranty.
Total Bytes Written
12T
24T
48T
96T
192T
6,000 TB TBW
8,000 TB TBW
16,000 TB TBW
32,000 TB TBW
64,000 TB TBW
See Endnotes for an explanation of the Terabyte (TB) unit.
Maximum Available Capacity
SKU
12T
24T
48T
96T
192T
RAID-0
12TB
24TB
48TB
96TB
192TB
RAID-6
10TB
20TB
40TB
80TB
160TB
See Endnotes for an explanation of Available Capacity.
Operating Temperatures
System: 50° to 95°F (10° to 35°C)
Storage: -13° to 113°F (-25° to 45°C)
Safety Standards
IEC 62368-1:2014
EN 62368-1:2014 + A11:2017 (US), A11:2018 (Canada), A11:2019 (EU), A11:2020 (Australia & New Zealand), and A11:2021 (Japan)
BIS Registration (India): R-41285684
13252(PART 1):2010/IEC 60950-1:2005
BIS Export Compliant ECCN 5A992 (US)
KC Certification: R-R-IODY-530101-48T
Environmental Standards
RoHS compliant
REACH compliant
100% recycled pulp packaging
EMC Standards
US: FCC 47 CFR Part 15 Subpart B
Canada: ICES-003 Issue 6:2016
European Union:
- EN 55032:2015 + AC:2016
- EN 55035:2017
- EN 61000-3-2:2014
- EN 61000-3-3:2013
Australia & New Zealand: AS/NZS CISPR 32:2015
Japan: VCCI-CISPR 32:2016
